• Designed for jet fuel and diesel fuel testing The analyzer measures important properties of aviation fuel and diesel fuel.
• Supports renewable and sustainable fuels. It can test SAF, Renewable Diesel or HVO, and biodiesel. It also supports the Referee Freezing Point method for co-processed SAF.
• Built-in cooling system The Integrated Peltier Cooling System controls sample temperatures from -100°C to 70°C. No external cooling bath or chiller is required.
• DLS technology for cold property testing Diffusive Light Scattering technology detects changes in the sample during Freezing Point, Cloud Point, and Pour Point tests.
• Horizontal capillary viscosity measurement Kinematic viscosity is measured using a constant-pressure system with a horizontal capillary. This provides accurate and standards-compliant results.
• Test results in as little as 5 minutes
• Cold Properties: as little as 5 minutes
• Viscosity and Density: as little as 10 minutes
• Cold Properties, Viscosity, and Density: as little as 15 minutes
• Less sample preparation time The operator can prepare and start a test in less than one minute. This helps reduce testing time and increase the number of samples tested each day.
• Automatic sample loading The Automatic Single Injection system provides consistent sample loading and helps reduce operator error.
• Optional 30-position autosampler The autosampler allows laboratories to test multiple samples continuously with less operator involvement.
• 13.3-inch touchscreen The large touchscreen and simple user interface make the instrument easy to operate.
• Phase Plot display The system shows a Phase Plot of the sample during testing, helping users review sample behavior and confirm the reliability of the result.
• Compatible with PACe Users can monitor instrument status in real time, check performance, and receive alerts about instrument issues through a computer or mobile device.

Freezing Point

• ASTM D5972 / IP 435 / SH/T 0770 – Compliant
• ASTM D2386 / IP 16 / ISO 3013 – Equivalent

Cloud Point

• ASTM D5773 / IP 446 – Compliant
• ASTM D2500 / IP 219 / ISO 3015 – Equivalent

Pour Point

• ASTM D5949 / SH/T 0771 / ISO/TS 23877-2 – Compliant
• ASTM D97 / IP 15 / ISO 3016 – Equivalent

Kinematic Viscosity

• ASTM D7945 / IP 641 / ISO 18335 – Compliant
• ASTM D445 / IP 71 / ISO 3104 – Equivalent

Density

• ASTM D7777 – Compliant
• ASTM D4052 / IP 365 / ISO 12185 – Correlation

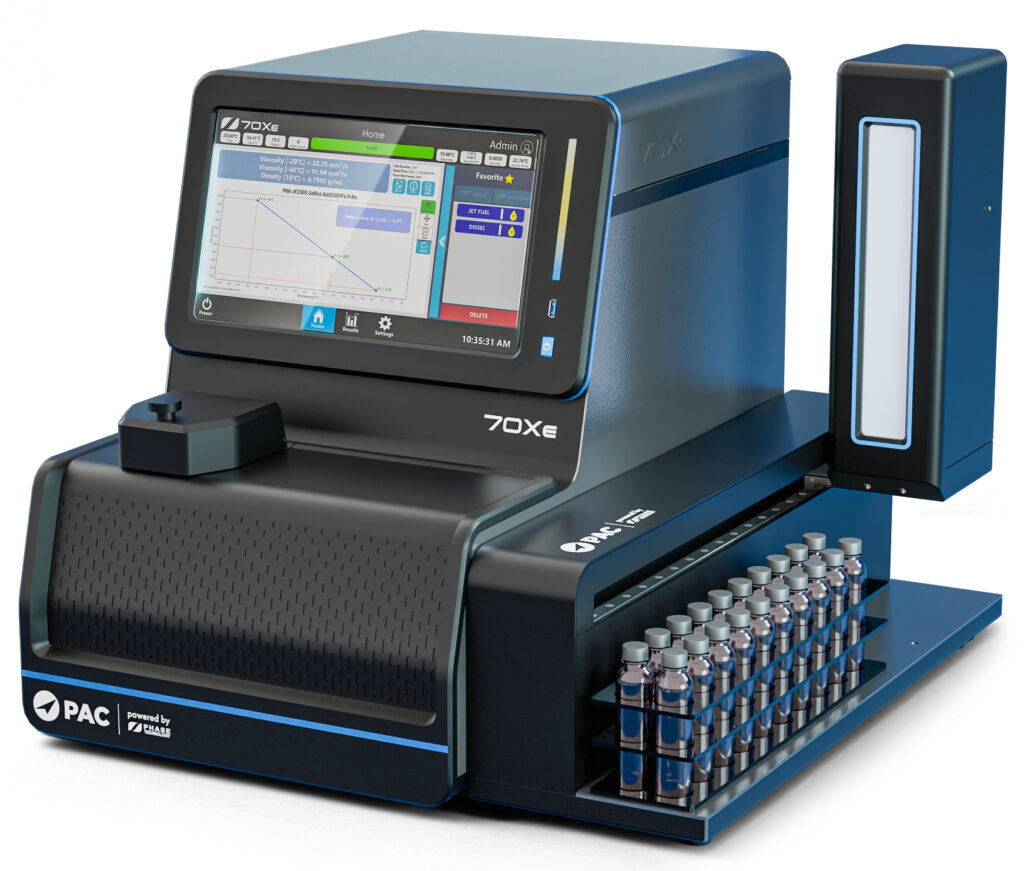

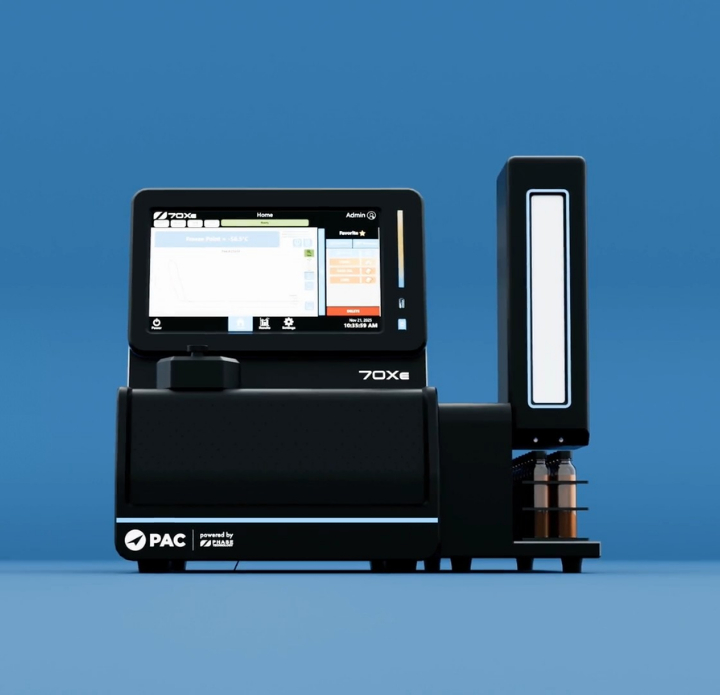

70Xe Series
